Removing and installing or replacing flat motor for front left or right power window regulator (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the front door SOUND INSULATION .

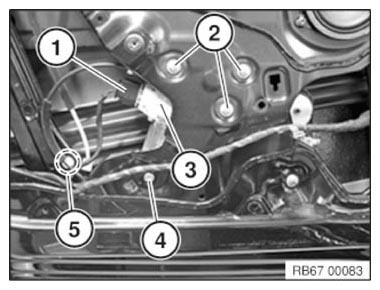

Unfasten plug connection (1) and disconnect.

Release nuts (2) and screw (4).

Tightening torque 51 33 2AZ .

Detach cable in area (5).

Feed out flat motor (3).

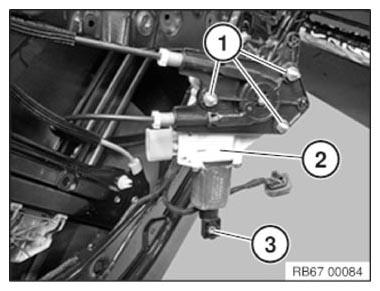

Release screws (1).

Tightening torque 51 33 1AZ .

Remove flat motor (2).

Replacement:

Remount support (3).

NOTE: Diagram similar.

Installation note:

Make sure drive shaft (2) is correctly seated in mounting (1) at power window regulator (3)!

Ensure that the flat motor (2) is assembled without tension.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES on initialization of power window regulator.
