Removing and installing/replacing backrest side section on left or right rear seat backrest (330i xDrive Wagon, 328d xDrive Wagon)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull seat belt to middle and place over head restraint.

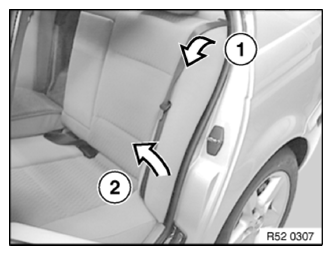

Pull top backrest side section (1) forwards and pull out upwards (2).

Courtesy of BMW OF NORTH AMERICA, INC.

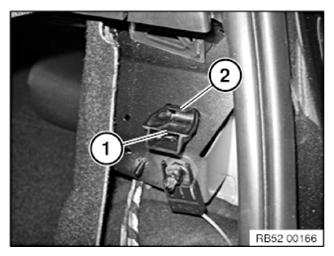

Press latch mechanism (2) to unlock the clip (1).

Pull clip (1) towards front out of the body.

If necessary, replace faulty clip (1).

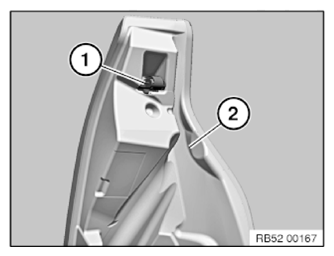

Insert the clip (1) in the backrest side section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

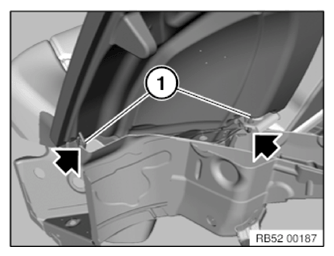

Insert guides (1) from backrest side section into mountings.
