Removing and installing/replacing tailgate gasket (340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Follow the notes on fitting SEALS .

Necessary preliminary tasks:

Remove left and right d-pillar TRIM PANEL
Remove tail panel TOP COVER

Removal:

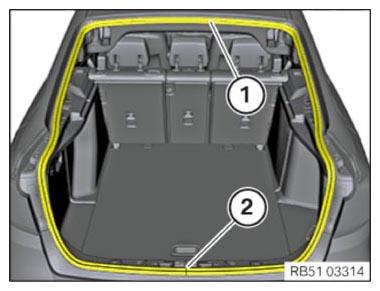

Detach gasket (1) starting at sealing joint (2), moving inwards.

NOTE: Sealing joint (2) is vulcanized.

Feed out gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Part: Replace gasket (1).

NOTE: The gasket (1) has to be replaced, as otherwise tightness can no longer be guaranteed.

Mount gasket (1) and make sure that the sealing joint (2) is located at the position shown.

Make sure that the gasket lies correctly on the adjacent trim panel components.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install left and right d-pillar TRIM PANEL
Install top tail panel TRIM
