Adjust rear spoiler trim

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 470
00 9 315
51 0 010
51 0 342

Dimensions in mm

Courtesy of BMW OF NORTH AMERICA, INC.

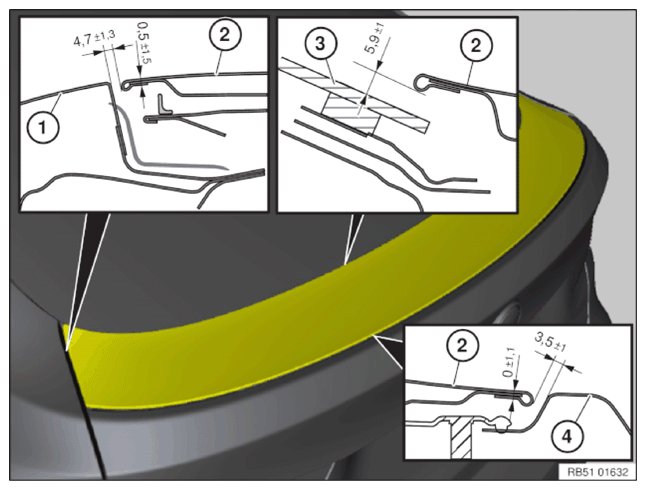

(1) Side wall	(3) Rear window
(2) Rear spoiler	(4) Rear lid

The following special tools can be used for measuring the gap dimension:

00 9 470 Gauge	00 9 315 Clearance wedge
51 0 010 Gauge	51 0 342 Steel tape measure

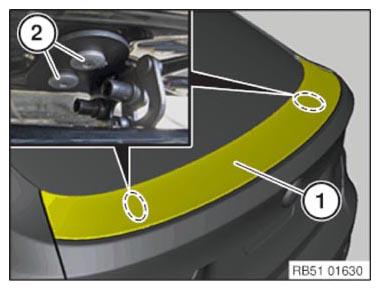

Setting horizontal and transverse direction:

Danger of injury by trapping !

Extend rear spoiler (1).

Slacken screws (2) until rear spoiler (1) can still just be moved.

Retract rear spoiler (1) and adjust gap dimension.

Extend rear spoiler (1) and tighten screws (2).

Tightening torque 51 71 7AZ .

Check gap dimension, repeat setting, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

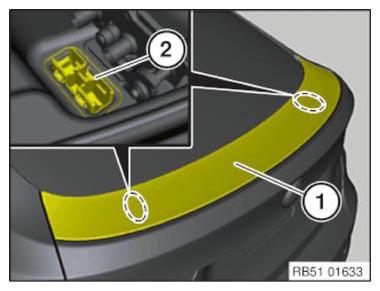

Height adjustment and inclination:

Danger of injury by trapping !

Extend rear spoiler (1).

Slacken screws (2) until rear spoiler (1) can still just be moved.

Retract rear spoiler (1) and adjust gap dimension.

Extend rear spoiler (1) and tighten screws (2).

Tightening torque 51 71 8AZ .

Check gap dimension, repeat setting, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
