Removing and installing/replacing rear wiper for wiper pivot bearing (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WIPER ARM FOR REAR WIPER .

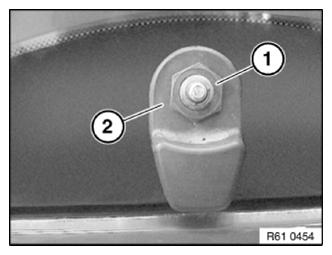

Secure rear window button (2) against falling down.
Release nut (1) and remove sealing ring underneath.
Tightening torque 61 62 2AZ .
IMPORTANT:
Danger of water penetration. Always replaced micro-coated nut (1) and associated sealing ring. New sealing ring must not show any signs of damage.

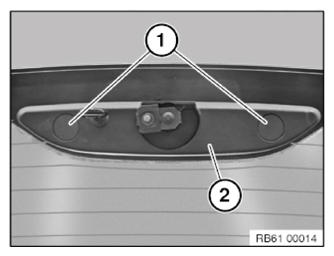

Remove caps (1).
Release nuts behind it and carefully remove wiper pivot bearing (2).
Tightening torque 61 62 3AZ .
Installation note:
Make sure wiper pivot bearing (2) is correctly fitted.
To facilitate installation, coat rear-window button or wiper pivot bearing with lubricant (e.g. low-surface-tension water or lubricant G14*).
* obtainable via the appropriate BMW parts catalogue
IMPORTANT:
Refer to the manufacturer's safety data sheet if using lubricant G14.
