Removing and installing/replacing USB audio interface connecting socket (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

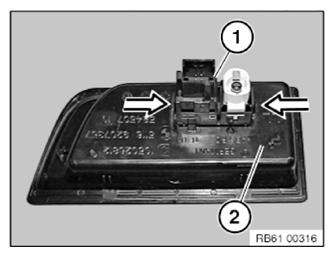

Release connecting socket (1) from latch mechanism on both sides.
Remove connecting socket from storage compartment (2).
Installation note:

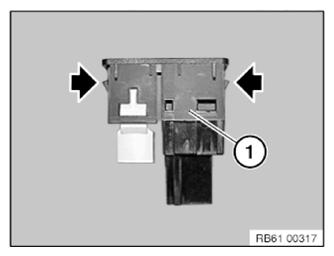

- Connecting socket latch mechanisms (1) must not be damaged or missing
- Make sure connecting socket (1) is correctly fitted in storage compartment
