Removing and installing/replacing distribution box (front) (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 325
WARNING:
Observe SAFETY INFORMATION for handling vehicle battery.
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
NOTE:
Work shown on the F20 by way of example, deviations in detail are possible in other models.

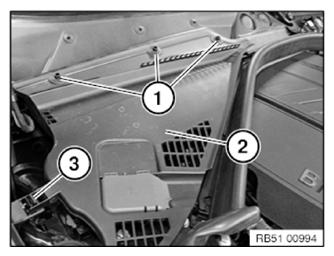

Turn locks (1) 90° counterclockwise.
Unlock catch (3).
Remove cover (2).

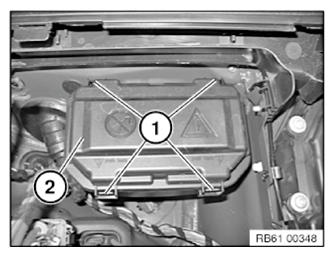

Release latch mechanisms (1) and remove lid (2).
Installation note:
Make sure cover (2) is correctly locked.

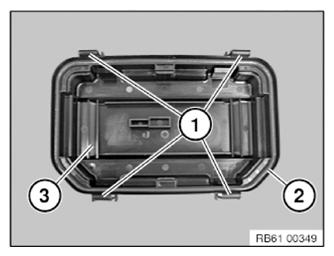

Installation note:
Latch mechanisms (1) and gasket (2) on lid (3) must not be damaged or missing.
Make sure gasket (2) is correctly seated in lid (3).

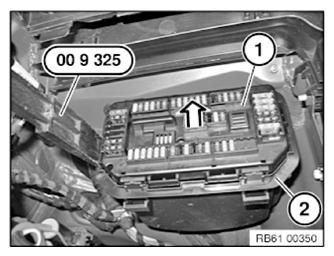

Release power distribution box (1) with special tool 00 9 325 from lower section (2) and pull power distribution box (1) upward.

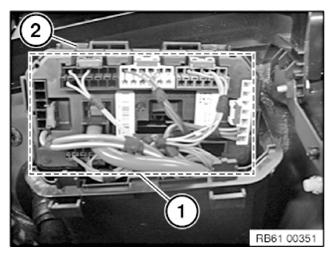

Release and disconnect all plug connections in area (1).
Remove power distribution box (2).
Installation note:
Make sure all plug connections are correctly locked .
