Removing trailing link at spring bolt
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

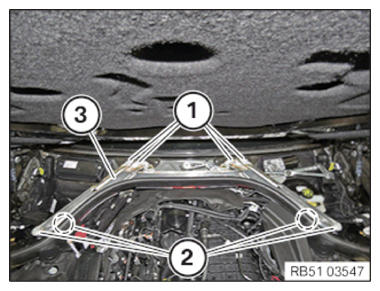

Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
