Removing chain tensioner
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

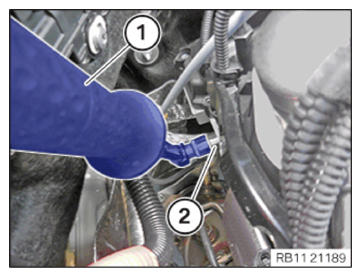

- A small amount of motor oil emerges when removing the chain tensioner (2), have a cleaning cloth ready.
- Detach the chain tensioner (2) with standard tools (1).

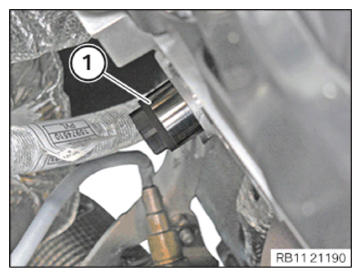

- Thread the chain tensioner (1) out and remove.
