Connect the refrigerant line to the expansion valve

• Replace O-rings.

  Parts:  O-rings

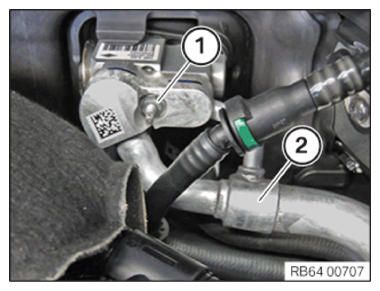

• Correctly position the refrigerant line (2).
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Refrigerant line to expansion valve/connecting piece
  M6	tightening torque  13 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the control unit holder (2).
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Control unit bracket at the shock tower
Hexagon screw	tightening torque  8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the cover (1) into the rubber mounts and install.

Courtesy of BMW OF NORTH AMERICA, INC.
