Remove luggage compartment floor covering

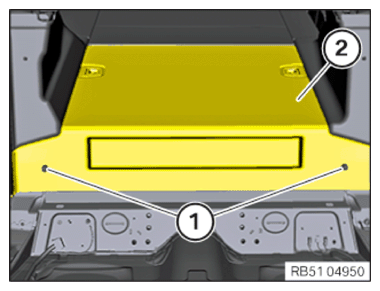

• Remove the expanding rivets (1) from the luggage compartment floor covering (2).

Courtesy of BMW OF NORTH AMERICA, INC.

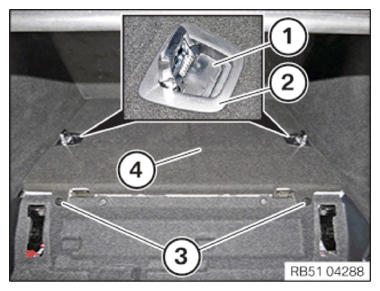

• Lever the cover (1) out and unscrew the bolt below it.
• Remove the lashing eye (2).
• Remove the expanding rivet (3).
• Remove the luggage compartment floor covering (4).

Courtesy of BMW OF NORTH AMERICA, INC.
