Block the crankshaft in he TDC firing position of cylinder 1
- Make sure the right special tool 2 288 380

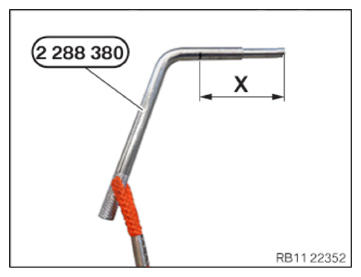

is resting correctly on the lock support up to dimension (X).
Dimension (X) = 55 mm
Check
- Check whether the correct dimension has been reached
Result

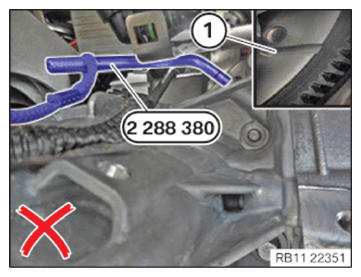

» The special tool 2 288 380 is incorrectly positioned.
The TDC firing position (1) of cylinder 1 not achieved.
Measure
- Correct the dimension,
- The special tool 2 288 380

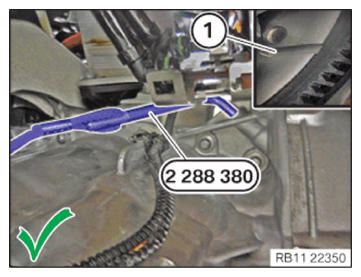

is positioned correctly.
The engine is in the TDC firing position 1 of the 1st cylinder.
