Replacing bulb for glove box light (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow INSTRUCTIONS for handling light bulbs (interior lighting).

Necessary preliminary tasks:

Remove GLOVEBOX LIGHT .

Courtesy of BMW OF NORTH AMERICA, INC.

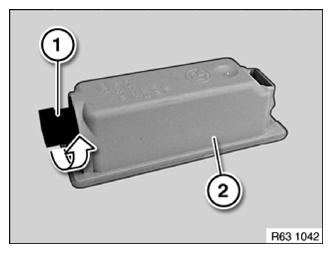

Turn bulb holder (1) in direction of arrow and pull out of light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and engaged in light (2).

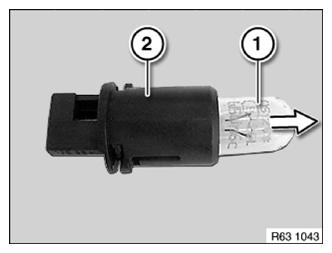

Remove bulb (1) from bulb holder (2) in direction of arrow.

Installation note:

Note BULB TYPE .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: LED technology lights can only be replaced completely!
