Removing and installing/replacing additional brake light (330i xDrive Wagon, 328d xDrive Wagon)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the REAR SPOILER .

Courtesy of BMW OF NORTH AMERICA, INC.

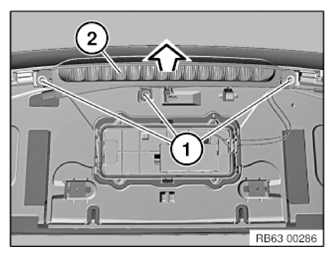

Release screws (1).

Tightening torque 63 25 2AZ .

Remove additional brake light (3) from the rear spoiler in the direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

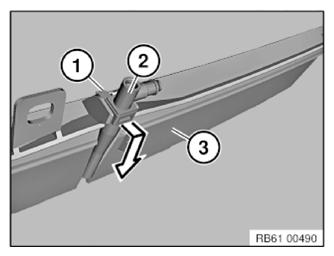

Unlock the latch mechanism (1) and remove the washer jet (2) from the additional brake light (3) in the direction of arrow.
