Removing and installing or replacing rear reflector (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Only on version with Aerodynamic package:

Remove BUMPER PANEL TRIM .

All other versions:

Remove rear BUMPER TRIM .

Only on version with Aerodynamic package:

Release the latch mechanism (1) on the rear reflector (2), and remove from the bumper panel (3) in the direction of the arrow.

Installation note:

Make sure the rear reflector (2) is correctly fitted in the bumper panel (3).

Latch mechanisms (1) and guide on the rear reflector (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

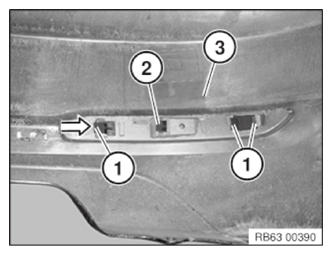

Release the latch mechanism (1) on the rear reflector (2), and remove from the bumper panel (3) in the direction of the arrow.

Installation note:

Make sure the rear reflector (2) is correctly fitted in the bumper panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

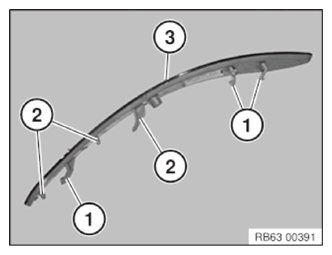

The latch mechanisms (1) and guides (2) on the rear reflector (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
