Installing switch trim on the front left or right front door trim panel
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
Detents, guides and mounting elements must not be damaged or missing.

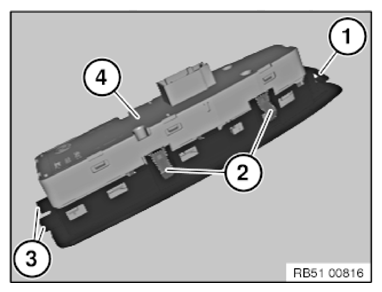

- Check latch mechanism (1), retaining clip (2) and guide (3) of the switch unit (4) for damages.
NOTE:
The switch trim must be replaced if the detents, clamps or guides are damaged.
For additional information see REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE) .
For additional information see REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE) .
- Connect connector.
- Position and clip in switch trim.
