Removing and installing/replacing luggage compartment aerial for Comfort Access (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

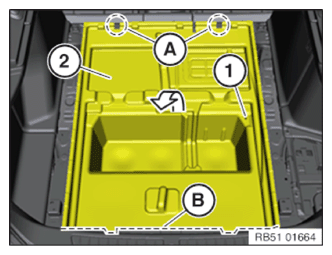

Feed out the luggage compartment well in the area (A and B).
Release expanding rivet (1) and remove luggage compartment well (2) in direction of arrow.

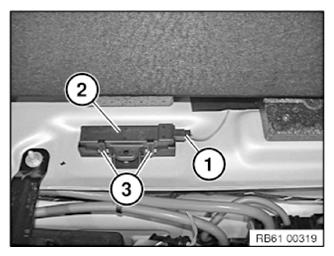

Unfasten plug connection (1) and disconnect.
Unlock bracket (3) and remove luggage compartment aerial (2).
Installation note:
Make sure luggage compartment aerial (2) is seated correctly in bracket (3).
