Removing and installing/replacing hotel position switch (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Necessary preliminary tasks:

Open glove box.

Courtesy of BMW OF NORTH AMERICA, INC.

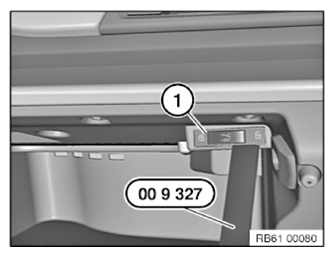

Lift out hotel position switch (1) with special tool 00 9 327 toward the front.

Disconnect associated plug connection and remove hotel position switch (1).
