Removing and installing/replacing ornamental grille for bumper panel (center) (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER PANEL .
Release expanding rivet (1).
If necessary, unclip hose pipe (2).
Loosen the holder (3) at marked latch mechanisms and feed out.
If necessary, feed the hose pipe for the headlight cleaning system and cable for ultrasonic sensors out as well.

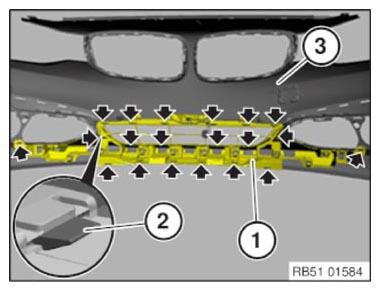

Release the ornamental grille (1) at the latch mechanisms (2) and remove from the bumper panel (3).
Installation note:
Catches (2) must not be damaged or missing.
