Removing and installing (replacing) ornamental grille for bumper panel (side) (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER PANEL .

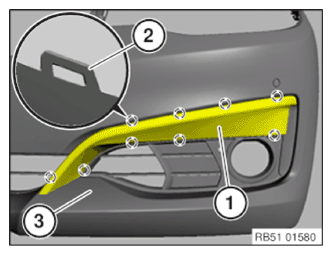

Release cover rod (1) at latch mechanisms (2) and pull out of bumper panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

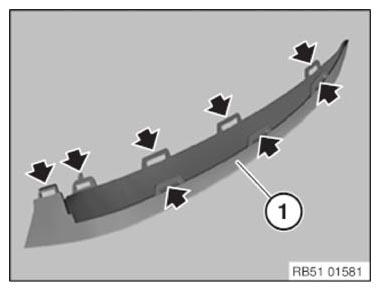

Latch mechanisms (arrow) at cover rod (1) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

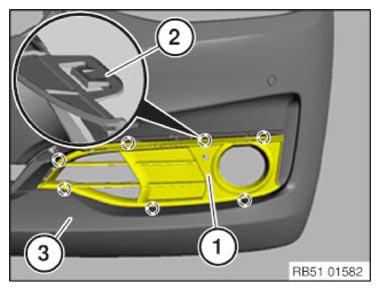

Release ornamental grille (1) at latch mechanisms (2) and pull out of bumper panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

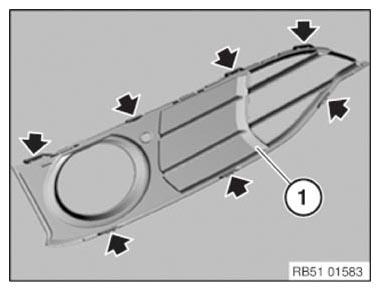

Latch mechanisms (arrow) at ornamental grille (1) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
