Engine - Variable Camshaft Controls - Repair (G30) (4 Of 6)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 126 Remove and install/replace the exhaust VANOS central valve (if necessary on the right) (530e PHEV, 2018-2020, 530e xDrive PHEV, 2018-2020)
>>
Remove VANOS central valve of the exhaust side
Remove VANOS central valve of the exhaust side

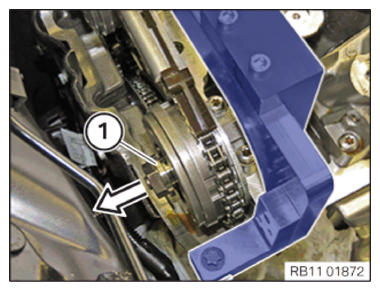

Remove VANOS central valve (1) of the exhaust side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
