Engine - Variable Camshaft Controls - Repair (G30) (4 Of 6)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 125 Removing and installing/replacing intake VANOS central valve (if necessary on the right) (530e PHEV, 2018-2020, 530e xDrive PHEV, 2018-2020)
>>
Remove VANOS central valve of the intake side
Remove VANOS central valve of the intake side

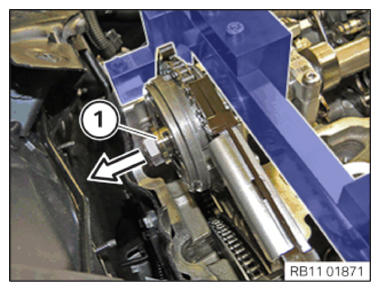

Remove VANOS central valve (1) of the intake side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
