Connecting the coolant lines of the exhaust turbocharger

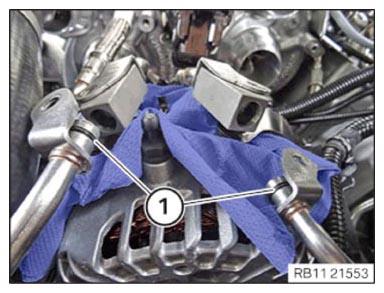

Check the seals (1) for damage, replace them if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

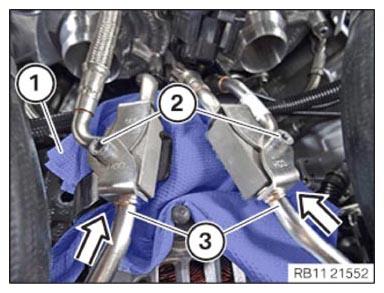

Connect the coolant lines (3) in the direction arrowed.

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Coolant line from exhaust turbocharger to bracket
M6x30	tightening torque 8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
