Installing the sealing frame on left and right

NOTE: Description is for right component only. The procedure on the left side is identical.

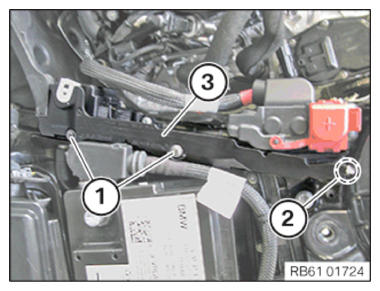

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Front power distribution box sealing frame
Bolt RF5x25	tightening torque	2.5 Nm
