Installing the brake caliper at the front left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

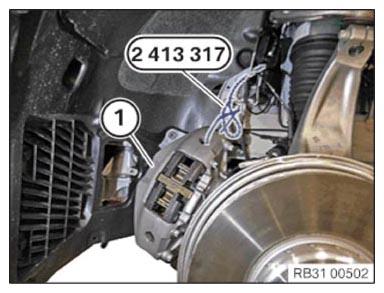

Loosen the special tool 2 413 317 from the brake caliper (1).

Courtesy of BMW OF NORTH AMERICA, INC.

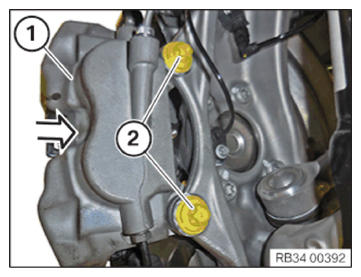

Install the brake caliper (1) in the arrow direction.
Replace screws (2).
Parts: Screws

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	tightening torque	110 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

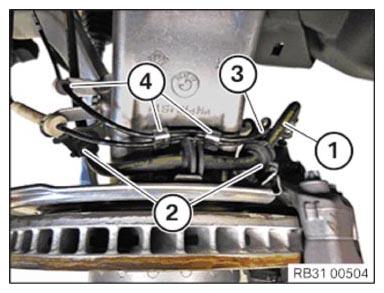

Hook the cable (3) for the brake pad wear sensor into the holder (4).
Hook the brake hose (1) into the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
