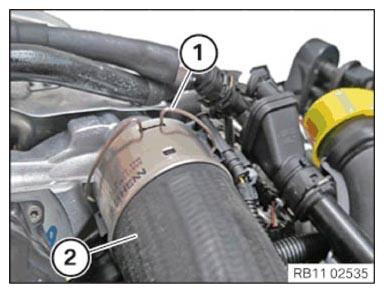

Detach the charge air hose from the exhaust turbocharger of cylinders 5 to 8

• Loosen retaining clip (1) on charge air hose.
• Detach the charge air hose (2) from the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.
