Remove the chain tensioner (engine removed)
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

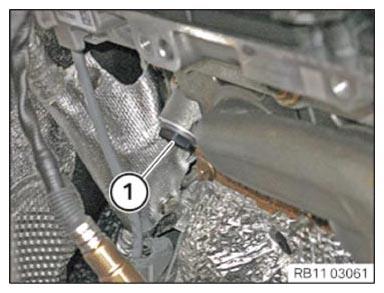

- A small amount on motor oil emerges when removing the chain tensioner (1), so have a cleaning cloth ready.
- Release the chain tensioner (1).
