Remove trailing link
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .

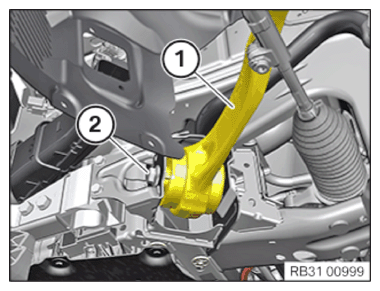

- Loosen screw (2).
- Release the tension strut (1) from the front subframe.
- Release the nut (1). If necessary, counter-hold at the Torx socket.
- Release the tension strut from the swivel bearing (2).

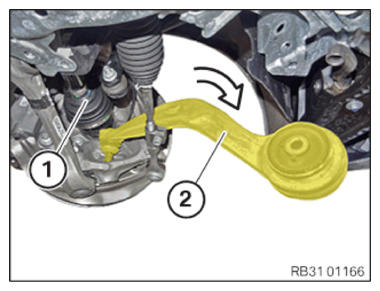

- Push the output shaft (1) upwards slightly.
- Feed out tension strut (2) in the arrow direction and remove.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE CRASH LEVER .
- Loosen screw (2).
- Release the tension strut (1) from the front subframe.
- Release the nut (1). If necessary, counter-hold at the Torx socket.
- Release the tension strut from the swivel bearing (2).
- Push the output shaft (1) upwards slightly.
- Feed out tension strut (2) in the arrow direction and remove.
