Remove thrust field
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

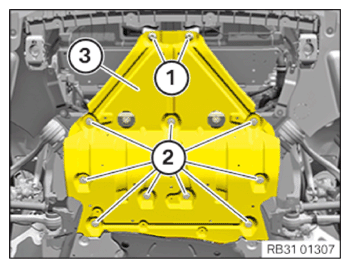

- Release the screws (1) and (2).
- Remove the thrust field (3).
