Restraints -- Repair (G22, G23 & G26)
>>
72 11 Seat Belts
>>
72 11 391 Removing and installing/replacing lower strap, right rear (4' Series coupe and convertible models)
>>

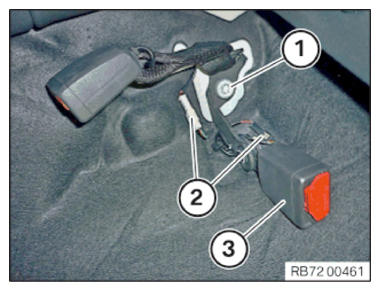

Remove rear right lower strap
Remove rear right lower strap
Loosen screw (1).
Unlock and disconnect plug connections (2).
Feed out rear right lower strap (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE REAR SEAT
.
