Tightening belt pulley
Tightening belt pulley

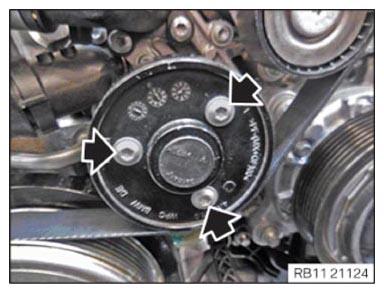

Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATION
Belt pulley to coolant pump
M6
Replace screws.
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
