Releasing the transmission bearing support

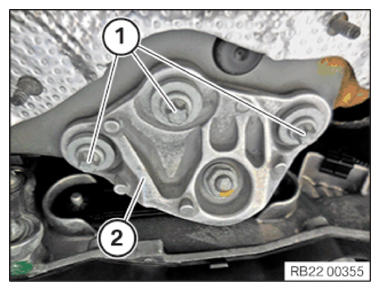

• Loosen the screws (1) on the transmission bearing support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screws (1) on the transmission bearing support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

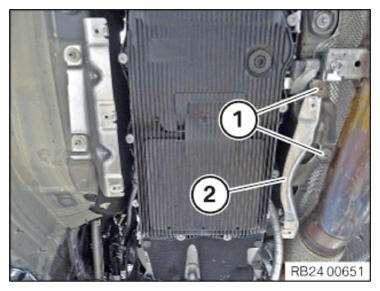

• Loosen nuts (1).
• Remove retaining plate (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the screws (1) on the transmission bearing support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
