Releasing the swivel bearing from the spring strut

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

Unlock the holder (1) of attachment rod (2) for the ride height sensor and release from the wishbone (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Slacken the screw (1) using the standard tool (2). In doing so, counter support at the nut (3).
Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

Release nut (1).
Pull out screw (2).
Remove the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

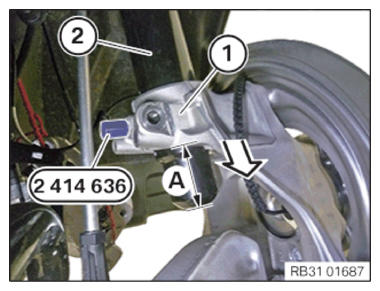

Spread the swivel bearing (1) with the special tool 2 414 636 .
Pull down the swivel bearing (1) in arrow direction from the spring strut (2) until dimension (A) is reached.
Dimension (A) = 1 cm

Courtesy of BMW OF NORTH AMERICA, INC.
