Releasing the front brake caliper

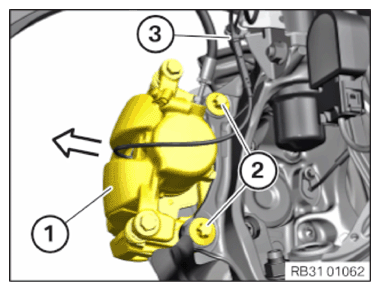

- Release the cable of the brake pad wear sensor from the holder (3) .
- Loosen screws (2) .
- Remove the brake caliper (1)
in the arrow direction.
Do not suspend the brake caliper (1) from the brake hose.

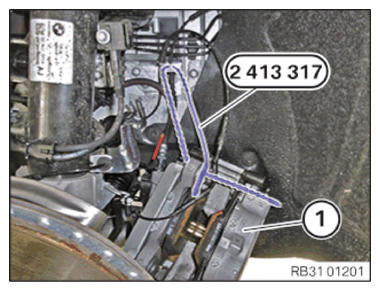

- Tie up the brake caliper (1) with the special tool 2 413 317
.
