Attaching the left or right output shaft to the rear axle differential
Secure the output shaft on the rear axle differential
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

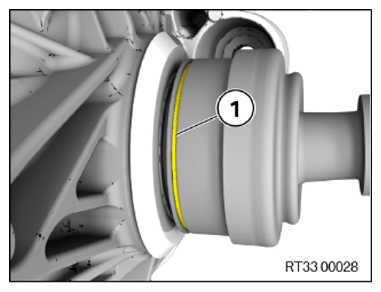

- Position the special tool described in the following at the circumferential slot (1) of the driven shaft.
- Use the appropriate special tool 0 495 857 (33 5 125) , 2 406 774 , 2 360 944 , or and a rubber mallet to pound the driven shaft into the rear axle differential.
