Attach the swivel bearing to the spring strut

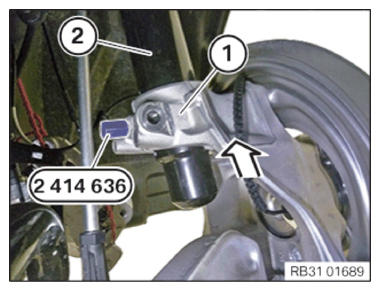

- Align the gap on the swivel bearing (1) correctly to the positioning pin on the spring strut (2).
- Slide the swivel bearing (1) in the arrow direction onto the spring strut (2) all the way to the stop.
- Remove the special tool 2 414 636
.
- Position holder (3) on the swivel bearing.
- Replace screw (2) and nut (1).
Parts: Screw, nut
- Insert screw (2) and guide on the nut (1).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATION
| Spring strut to swivel bearing | ||
| M10 Replace screw and nut. Tightening via screw. |
Tightening torque | 60 Nm |
| Angle of rotation | 180° | |

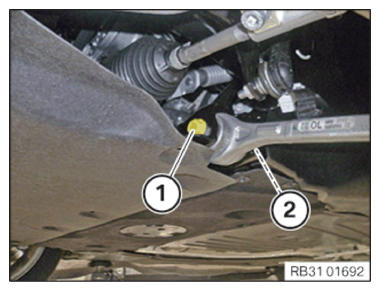

- Release the screw (1). In doing so, counter support at the nut (2).
- Replace screw (1) and nut (2).
Parts: Screw, nut
- Insert screw (1) and guide on the nut (2).
NOTE:
TECHNICAL INFORMATION
The screw connection is tightened later in the NORMAL POSITION with the torque wrench.
The screw connection is tightened later in the NORMAL POSITION with the torque wrench.
- Hand-tighten the screw (1) with the standard tool (2). In doing so, counter support at the nut (3).
Standard tool: Pivoting extension 1/2 inch
Swivel extension 1/2 inch
Swivel extension 1/2 inch
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

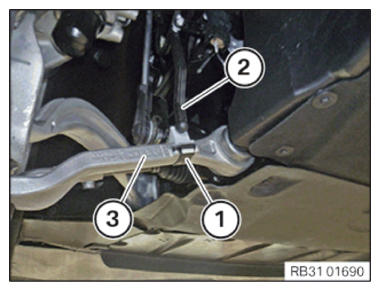

- Position the holder (1) of the attachment rod (2) for the ride height sensor on the wishbone (3) and lock it.
