Removing left and right brake air duct

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the brake ventilation duct

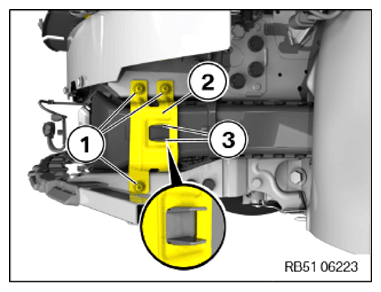

Loosen screws (1).
Detach the vertical connection (2) from the detents (3) and remove it.

G15581798

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram without front wheel.

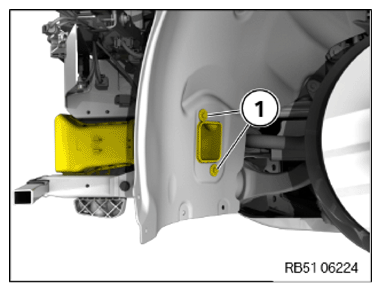

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

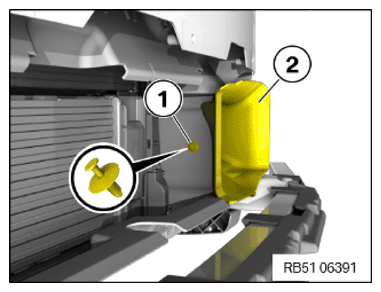

Loosen expanding rivet (1).
Feed out the brake ventilation duct (2) toward the front.

G15581801
