Install the rear luggage compartment side shelf

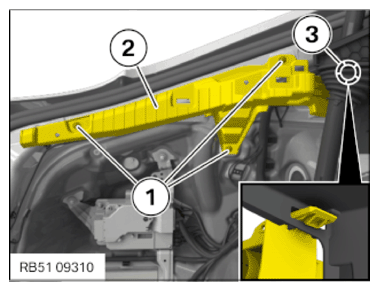

• Guide the rear luggage compartment side shelf (2) toward the front into the detent (3) and clip in.
• Position the rear luggage compartment side shelf (2).
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Luggage compartment to body
Oval-head screw	Tightening torque	4 Nm
