Removing the electric drive unit from the front subframe

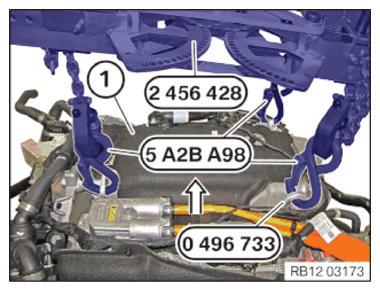

Fasten shackle from 0 496 733 (00 6 080) to loop (1) as shown.
2 456 428 And position 5 A2BA98 on the electric drive unit (1) as shown.
2 456 428 Lift slightly using 2 220 718 so that the chains are lightly tensioned.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the electric drive unit (1) using 2 220 718 2 456 428 and 5 A2B A98 by moving it upwards out o f the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
