Remove the underbody protection of the steering gear
Remove the underbody protection of the steering gear

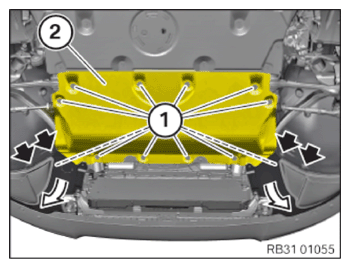

Release the screws (arrows) of the wheel arch cover on the bottom wheel arch cover.
Fold the bottom wheel arch cover in the direction of arrow to one side.
Loosen screws (1).
Remove the underbody protection of the steering gear (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
