Clean sealing surfaces
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
NOTE:
TECHNICAL INFORMATION
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.

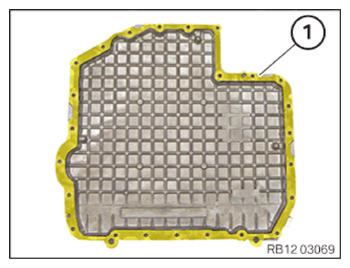

- Clean the sealing surface (1)
with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 - Dry sealing surface (1)
with a clean, lint-free cleaning cloth.NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.NOTE: TECHNICAL INFORMATION

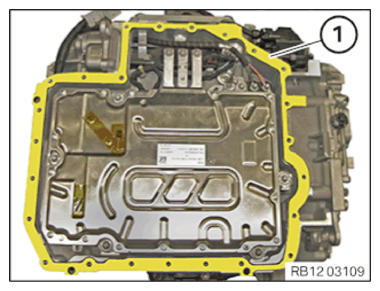

The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies. - Clean the sealing surface (1)
with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 - Dry the sealing surface (1) with a clean, lint-free cleaning cloth.
