Installing the oil-level sensor

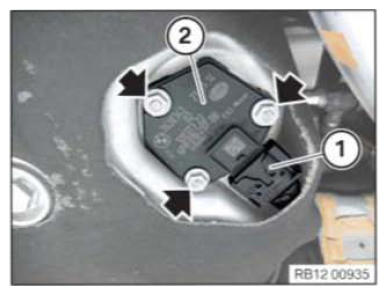

- Insert and install the oil-level sensor (2).
- Tighten the nuts (arrows).
TIGHTENING TORQUE SPECIFICATION
| Oil-level sensor to oil sump | ||
|---|---|---|
| M6 | Joining torque | 2 Nm |
| tightening torque | 8.5 Nm | |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

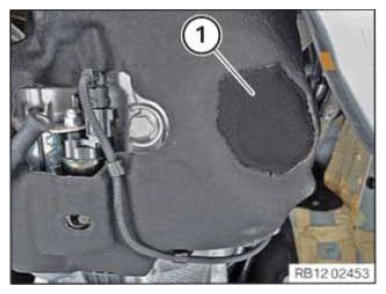

- Mount the cover (1).
Follow-up work
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to FILLING ENGINE OIL .
- Refer to OPENING THE OIL FILLER CAP .
- Refer to CHECKING ENGINE OIL LEVEL .
