Installing the engine wiring harness for the sensor system 1

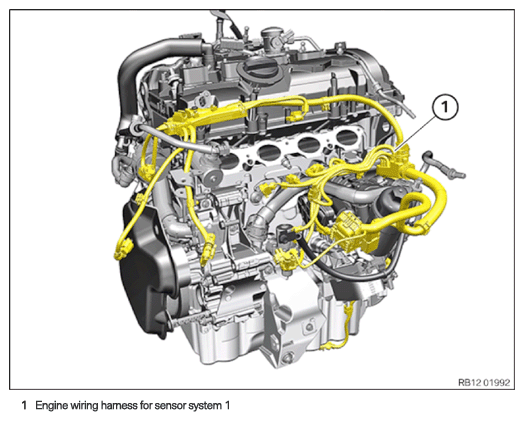

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Guide in and install the wiring harness section (1)
for sensor system 1.
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATION
| Wiring harness section for engine to cylinder head cover | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |

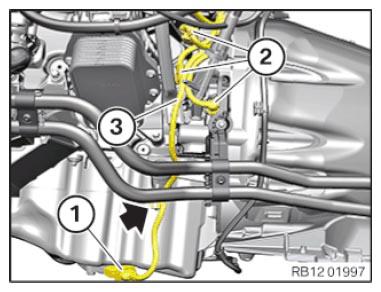

- Guide in the wiring harness section (1) and install.
- Guide in and install the wiring harness section (3) for sensor system 1.
- Connect connectors (2)
and lock.
The connectors (2) must engage audibly.
- Secure clamps (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Position the acoustic cover (2) .
- Fasten expanding rivet (1) .
- Secure clamps (arrow).
- Fasten expanding rivet (1)
.
- Fasten the Christmas tree clip (2) .
- Secure expanding rivet (1) .
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
- Make sure the connector (1) engages audibly.
- Insert and install the positive battery cable (3) .
- Secure positive battery cable (3) at the clamp (4) .
- Tighten the nut (2) hand-tight.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
- Correctly attach the positive battery cable (1) to the anti-twist lock (2) .
- Tighten nut (3) .
TIGHTENING TORQUE SPECIFICATION
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.5 Nm |
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | tightening torque | 8 Nm |
- Guide in the wiring harness section (2) and install.
- Make sure the locking mechanism (arrow) engages audibly.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | tightening torque | 8 Nm |
- Guide in and install the wiring harness section (5) for sensor system 1.
- Secure clamps (arrow).
- Connect connectors (4)
and lock.
The connector (4) must engage audibly.
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect connectors (2)
and lock.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Guide in and install the wiring harness section (1) for sensor system 1 on the bracket (2) .
Follow-up work
- Refer to CONNECT THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
