Remove the wiring harness section for the Valvetronic servomotor

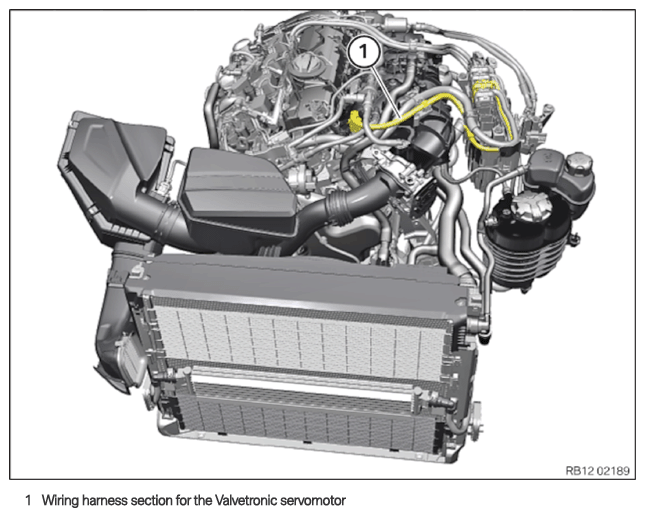

Wiring harness section for the Valvetronic servomotor
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE DME CONTROL UNIT .
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.

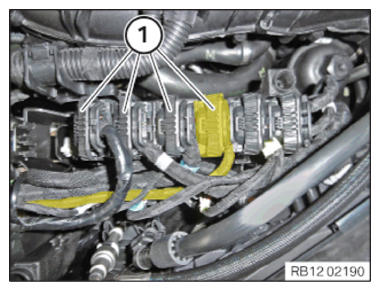

- Unlock and disconnect plug connections (1).
- Guide out wiring harness section for the Valvetronic servomotor (2) and set aside.

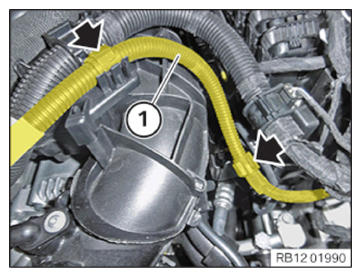

- Release the wiring harness mountings (arrow).
- Remove the wiring harness section (1) and put to one side.

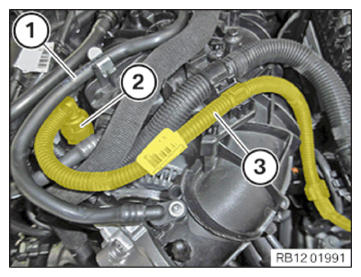

- Slide the tank vent line (1) out and set it aside.
- Unlock plug connection (2) and disconnect.
- Remove the wiring harness section (3).
