Installing the brush module

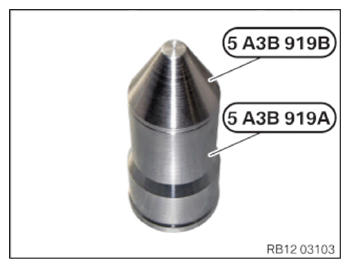

- Position part B on part A of the special tool 5 A3B 919.
- Store the special tool 5 A3B 919
on a solid, clean surface (as depicted).

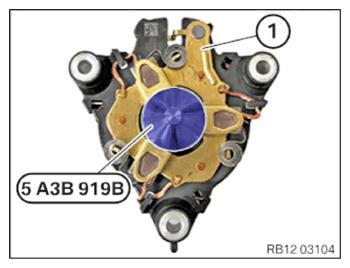

- Position the brush module (1) on the special tool 5 A3B 919 (as depicted) and put it down to the stop
.
Threaded connection for the excitation cable is pointing downward .
All six carbon brushes must be in firm contact with the special tool 5 A3B 919 (part A).
- Detach part B from the special tool 5 A3B 919
.
- Turn around the brush module (2)
.
Threaded connection for the excitation cable is pointing upward .

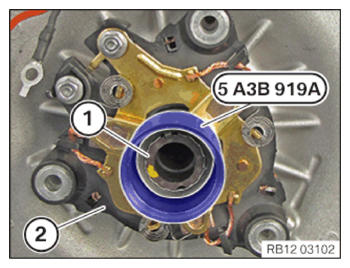

- Position the brush module (2) on the rotor shaft (1) all the way to the stop.
- Brace the brush module (2)
and remove the special tool 5 A3B 919
(part A).

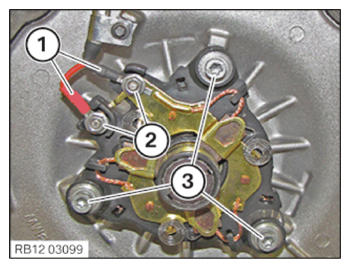

- Position the excitation cable (1) as depicted.
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATION
| Excitation cable to brush module | |
|---|---|
| M5 | 4 Nm |
- Tighten the screws (3) .
TIGHTENING TORQUE SPECIFICATION
| Brush module to housing | |
|---|---|
| M6 | 8 Nm |
Follow-up work
- Refer to INSTALLING THE LID OF THE BRUSH MODULE .
- Refer to EXECUTING FUNCTIONAL CHECKING BEFORE RE-INSTALLATION .
- Refer to REMOVING THE PRESSURE COMPENSATION ELEMENT FROM EME LID .
- Refer to PERFORMING EOS TEST .
- Refer to STICKING THE PRESSURE COMPENSATION ELEMENT ON THE EME LID .
- Refer to INSTALLING SOUND INSULATION .
- Refer to INSTALLING THE RIGHT MOUNTING BRACKET .
- Refer to INSTALLING THE TOP SOUND INSULATION .
- Refer to REMOVING THE ELECTRICAL DRIVE UNIT FROM THE ASSEMBLY JIG .
- Refer to INSTALLING FRONT SOUND INSULATION .
- Refer to INSTALLING THE SUPPORT FOR ELECTRIC COOLANT PUMP .
- Refer to INSTALLING THE ELECTRIC DRIVE UNIT IN THE FRONT SUBFRAME .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to FASTENING THE RIDE HEIGHT SENSOR ON THE BOTTOM WISHBONE .
- Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
- Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
- Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to DELETING FAULT MEMORY .
- Refer to CALIBRATING AND TEACHING IN THE ROTOR POSITION SENSOR .
