Installing the front door trim panel

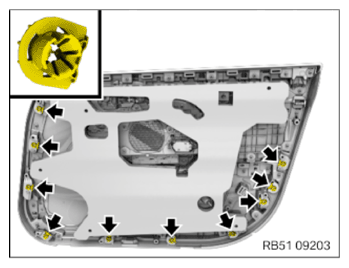

• Check the clips (arrows) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

• Check all stop pads (1) for damage; replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

• Press the inner door handle in the Closed direction.
• Feed in the Bowden cable (2) for the inner door handle and clip in with the detent (1).
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

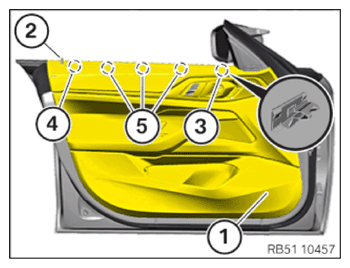

• Position the operating rod (2) on the door trim panel (1) and feed it in.
• Clip in the door trim panel (1) with the clamps (3) and (4).
• Clip in the door trim panel (1) at the clamps (5).
• Ensure that the door trim panel is not pressed in the area of the accent strip as it may damage the fiber optic cable otherwise.

  Courtesy of BMW OF NORTH AMERICA, INC.

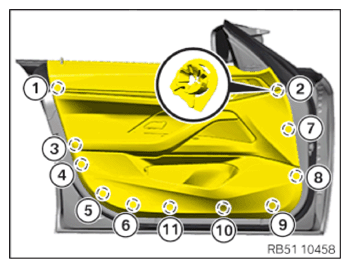

• Clip in the door trim panel at the marked positions in the order shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Door trim panel
  Oval-head screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check the detents (1) and the guide (2) at the cover (3) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) or the guide (2) are damaged.

Measure

• Replace the cover (3).

  Parts:  cover panel

• Fit the cover (1) and clip in with the detents (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check the detents (1) and the guides (2) at the cover (3) of the door handle for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) or the guides (2) are damaged.

Measure

• Replace the cover (3) of the door handle.
• Pull the door opener.
• Feed in the cover of the door handle (1) with the guides and clip it in with the detents (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
