Install the central mount of the prop shaft

• Slide the central mount (1) onto the prop shaft.

  The collar (2) must point in the driving direction toward the front prop shaft.

• Central mount diameter 30 mm (black sealing ring):

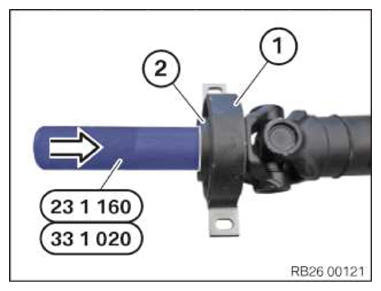

  Slide on the central mount (1) all the way to the stop using special tool 0 491 491 (23 1 160).

• Central mount diameter 35 mm (blue sealing ring):

  Slide on the central mount (1) all the way to the stop using special tool 0 492 074 (33 1 020).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the boot of the center bearing

• Apply an even coating of grease to longitudinal splines on propeller shaft.
• Slide the bellows (1) onto the groove (2) and make sure the fit is secure.
  CONSUMABLE SPECIFICATION



  Lubricating grease Olistamoly 2 LN 584 LO

  100 g, Tube

  83 19 0 447 919

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, replace the clamping ring (1) and insert it into the front prop shaft (2).

  Parts:  Clamping ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the front prop shaft (3) onto the longitudinal splines of the rear prop shaft (4) in accordance with the mark you made.

  The marks (arrows) must be flush.

• Slide the bellows (1) onto the groove (2) and make sure the fit is secure.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the prop shaft together with them in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COMPLETE PROP SHAFT .
• Refer to INSTALLING THE HEAT SHIELD .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
