Removing the airbag sensor on the B-pillar
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING ARMREST SIDE SECTION .
- Refer to REMOVING REAR SIDE TRIM PANEL .

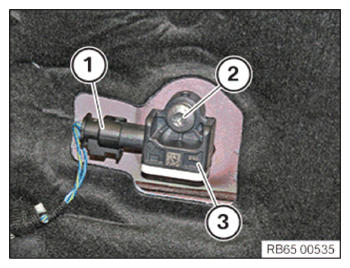

- Unlock plug connection (1) and disconnect.
- Loosen screw (2).
- Remove the airbag sensor (3) on the B-pillar.
