Remove the wave trap
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.
Preliminary work
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE SUN VISORS AND THE LEFT AND RIGHT COUNTER SUPPORTS .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING INTERIOR ROOF LIGHT .
- Refer to REMOVING THE LEFT AND RIGHT B-PILLAR TRIM PANELS PARTIALLY .
- Refer to REMOVING THE REAR LEFT AND RIGHT HANDLE .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING THE COVER OF THE LEFT AND RIGHT LUGGAGE COMPARTMENT SIDE SHELF .
- Refer to REMOVING THE LEFT AND RIGHT D-PILLAR TRIM PANEL .
- Refer to LOWERING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
- Refer to LOWERING ROOFLINER .
NOTE:

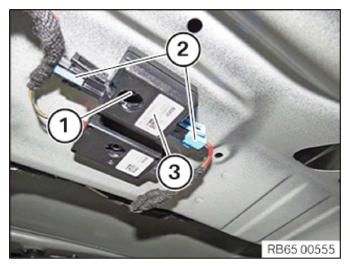

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen screw (1).
- Unlock and disconnect the plug (2).
- Remove wave trap (3).
