Remove rear tweeter
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING THE LUGGAGE COMPARTMENT COVER .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE STRAP FITTING AT THE REAR .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING REAR MID-RANGE SPEAKER .

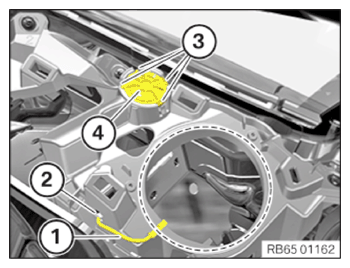

- Feed cable (1) out through the opening (2).
- Unlock the locks (3).
- Lower the tweeter (4) a little downwards.
- Guide the tweeter (4) out through the marked area and remove.
